This blog post will go through the best Supermicro motherboards you should consider investing in 2022. Supermicro is an information technology company that specializes in servers and server hardware. This is the world's leading company that has provided the best server solutions for over 25 years. Supermicro has dedicated its expertise to improving and providing servers, network devices, server management software and high-end workstations.
With all these years of hard work and dedication, they are the industry leaders when it comes to server hardware. One of their flagship products is the Supermicro Motherboards. These motherboards are optimized to handle any type of load and provide extremely good performance. We say it from experience as we have been using Supermicro motherboards on all 1Gbits servers for the past 7 years.
In this short informative tutorial, we thought of using our expertise and experience to conduct a comparison between the best Supermicro motherboards that you can use in your servers. During this comparison, we have considered some very specific criteria that make them stand out from the crowd.
We believe that if you are looking for an all-in-one motherboard, any of the motherboards mentioned here will get the job done.
Why choose a Supermicro motherboard?
One of the biggest factors for choosing a Supermicro motherboard is the years of expertise in the industry. They have been providing technologically advanced motherboards since 1993. Supermicro is well known for its consistently high-quality designs, using the best components and the production expertise of the product.
They have an extensive range of x86 server boards available that will meet your ideal requirements while keeping the performance and price intact. The motherboards are designed in a way that they are capable of supporting the latest CPUs, memory and add-on hardware. All the motherboards are optimized with each component in order to provide the best result for the user.
Another noteworthy feature of Supermicro motherboards is their durability and temperature support. The lifecycle of a Supermicro Motherboard lasts for at least a decade without any major problems. They cater to different needs of clients; hence they provide a motherboard that is specific for the following:
- Server Boards
- Workstation boards
- Embedded or IoT boards
- Desktop / Gaming boards
Supermicro is the perfect solution for our dedicated servers, making it possible to provide consistent quality services to our clients.
How to choose the perfect Supermicro board?
Before choosing a motherboard for your system, consider the following factors:
- The chipset
- Form factor
- CPU support
- Memory support
- Expansion slots
- Graphic support
- SAS/SATA/SCSI device ports
- Raid support
- LAN ports
- On-board features
- Cost
When you consider the following factors, choosing the perfect motherboard that will suit your exact needs is possible. This is needed when you are choosing a dedicated server, as the Motherboard is the backbone of your system.

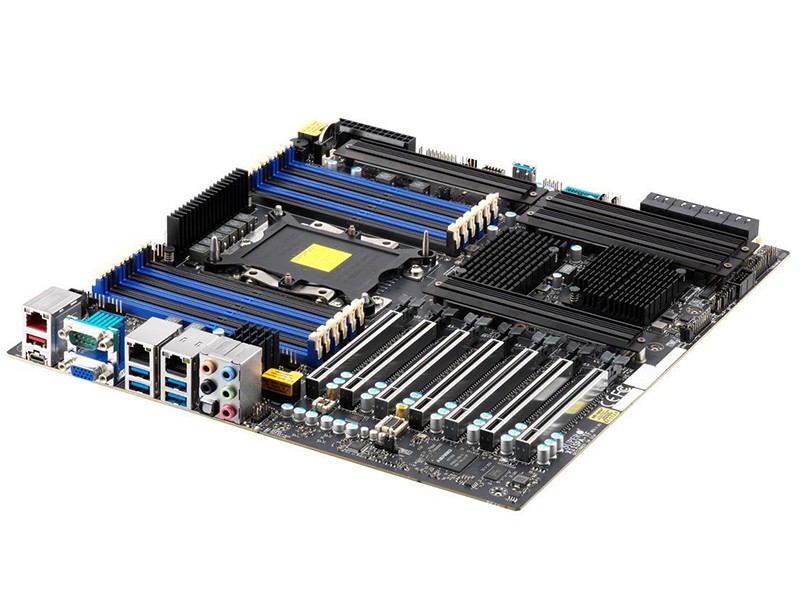

1. Supermicro X11SPA-TF motherboard
The first on our list is the Supermicro X11SPA-TF model. The key features of this motherboard are:
|
Form factor |
E-ATX |
|
Dimensions |
30.48cm x 33.02cm |
|
CPU support |
Intel Xeon processors |
|
Maximum cores |
Up to 28 cores |
|
Memory technology |
DDR4 |
|
Maximum supported RAM |
3TB |
|
Graphic card interface |
PCI-E |
|
Chipset |
Intel C621 |
|
LAN ports |
· Gigabit Ethernet port · 10Base-T port · Dedicated IPMI LAN port |
|
USB ports |
· 2 USB 2.0 ports · 6 USB 3.1 Gen1 ports · 4 USB 3.1 Gen2 ports |
|
Operating temperature |
0 to 50 degrees Celsius |

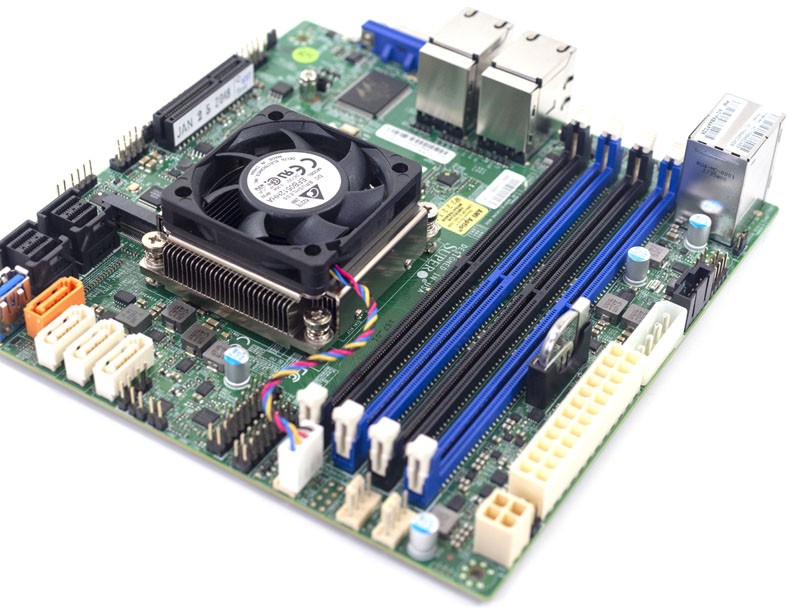

2. Supermicro A2SDi-8C+-HLN4F motherboard
The next on the list of top Supermicro motherboards is the A2SDi-8C+-HLN4F model. Let’s check the key features of this model:
|
Form factor |
Mini-ITX |
|
Dimensions |
17.02cm x 17.02cm |
|
CPU support |
Intel Atom processor C3758 |
|
Maximum cores |
Up to 8 cores |
|
Memory technology |
DDR4 |
|
Maximum supported RAM |
256GB |
|
Graphic card interface |
PCI-E |
|
Chipset |
System on Chip |
|
LAN ports |
4 Gigabit Ethernet LAN ports |
|
USB ports |
· 4 USB 2.0 ports · 1 USB 3.1 Gen1 port |
|
Operating temperature |
0 to 60 degrees Celsius |

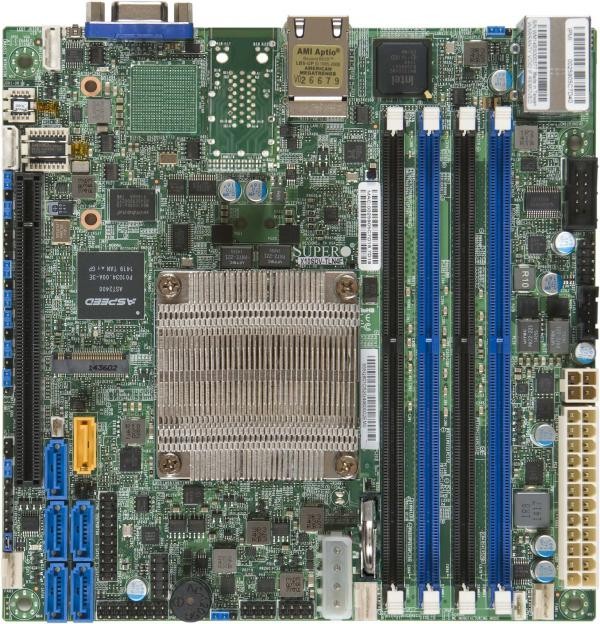

3. Supermicro X10SDV-F motherboard
This Motherboard is our third option. The options of the Supermicro X10SDV-F motherboard are as follows:
|
Form factor |
Mini-ITX |
|
Dimensions |
17.02cm x 17.02cm |
|
CPU support |
Intel Xeon processor |
|
Maximum cores |
Up to 8 cores |
|
Memory technology |
DDR4 |
|
Maximum supported RAM |
128GB |
|
Graphic card interface |
PCI-E |
|
Chipset |
System on Chip |
|
LAN ports |
· 2 Gigabit Ethernet LAN ports · 1 Dedicated IPMI LAN port |
|
USB ports |
· 4 USB 2.0 ports · 2 USB 3.0 Gen1 port |
|
Operating temperature |
0 to 60 degrees Celsius |

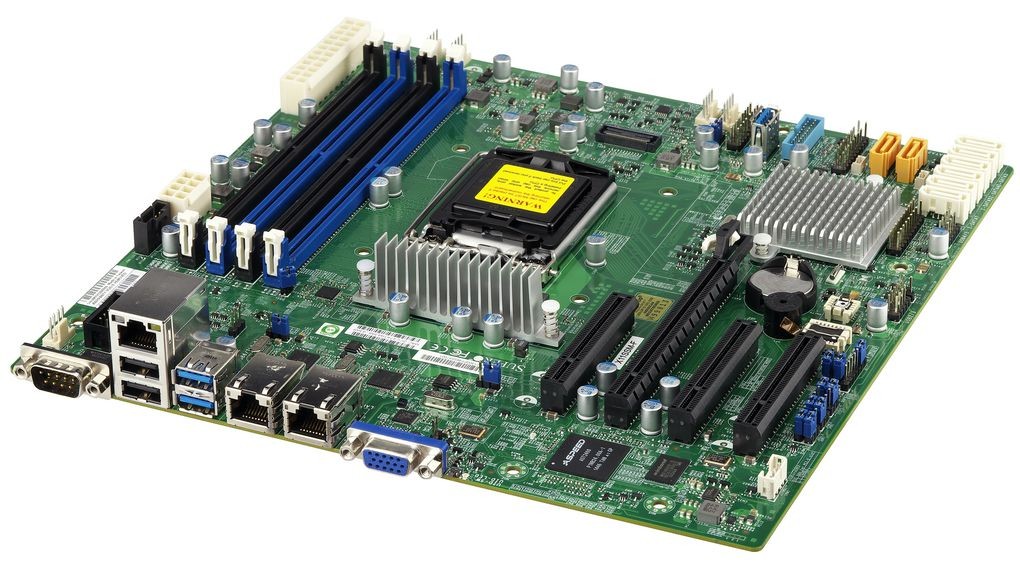

4. Supermicro X11SSM-F motherboard
Let’s go ahead and check the features of the Supermicro X11SSM-F motherboard:
|
Form factor |
Micro-ATX |
|
Dimensions |
24.38cm x 24.38cm |
|
CPU support |
Intel Xeon, Intel Celeron, Core i3 processors |
|
Memory technology |
DDR4 |
|
Maximum supported RAM |
64GB |
|
Graphic card interface |
PCI-E |
|
Chipset |
Intel C236 |
|
LAN ports |
Dual LAN with Intel Ethernet Controller |
|
USB ports |
· 6 USB 2.0 ports · 5 USB 3.0 Gen1 port |
|
Operating temperature |
0 to 50 degrees Celsius |

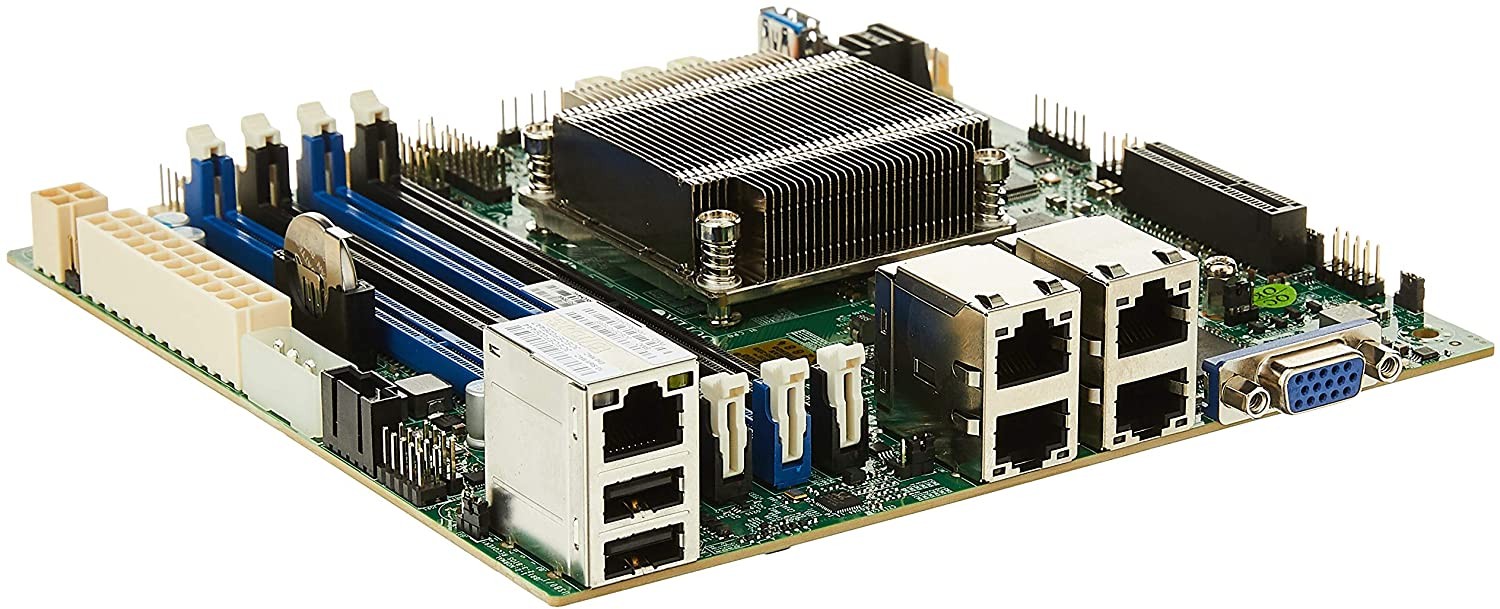

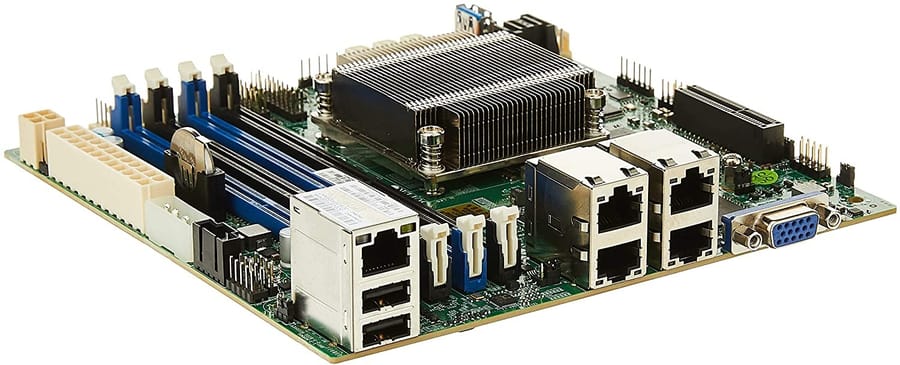

5. Supermicro A2SDi-4C-HLN4F motherboard
Features of Supermicro A2SDi-4C-HLN4F motherboard model:
|
Form factor |
Mini-ITX |
|
Dimensions |
17.02cm x 17.02cm |
|
CPU support |
Intel Atom processor |
|
Maximum cores |
Up to 4 cores |
|
Memory technology |
DDR4 |
|
Maximum supported RAM |
256GB |
|
Graphic card interface |
PCI-E |
|
Chipset |
System on Chip |
|
LAN ports |
4 Gigabit Ethernet LAN ports |
|
USB ports |
· 4 USB 2.0 ports · 1 USB 3.0 port |
|
Operating temperature |
0 to 60 degrees Celsius |

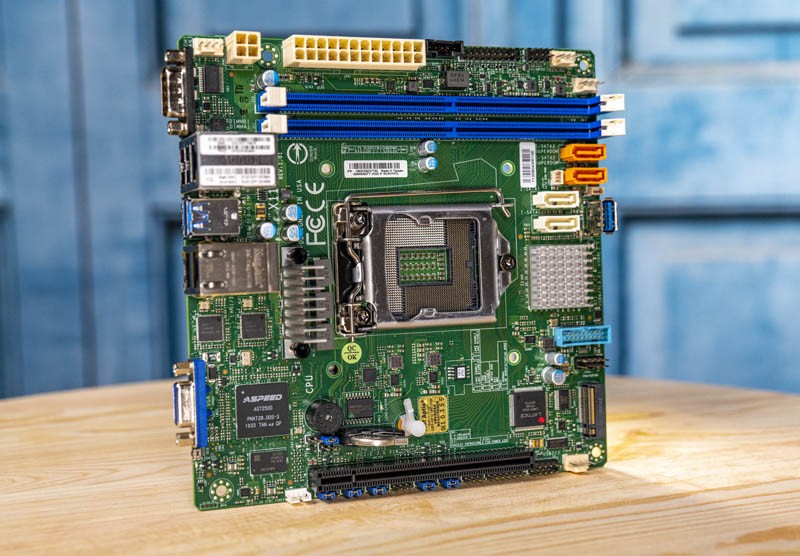

6. Supermicro X11SCL-IF motherboard
Some of the key features to take into note with this board are that:
|
Form factor |
Mini-ITX |
|
Dimensions |
17.02cm x 17.02cm |
|
CPU support |
Intel Xeon, Core i3, Celeron processors |
|
Maximum cores |
Up to 6 cores |
|
Memory technology |
DDR4 |
|
Maximum supported RAM |
64GB |
|
Graphic card interface |
PCI-E |
|
Chipset |
Intel C242 |
|
LAN ports |
Dual LAN with 1GbE with Intel I210 |
|
USB ports |
· 4 USB 2.0 ports · 7 USB 3.2 Gen2 ports |
|
Operating temperature |
0 to 50 degrees Celsius |

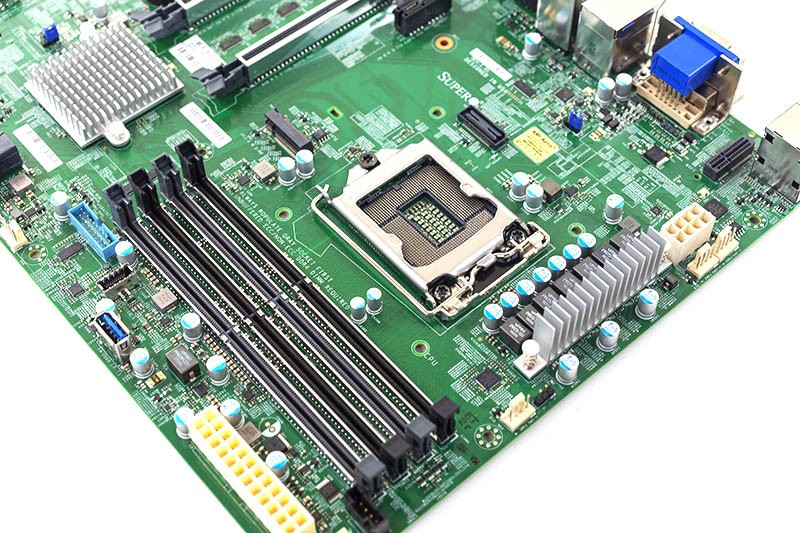

7. Supermicro X11SCA-F motherboard
This should be your go-to choice if you are looking for the latest microchip chipboard to support your Intel range of 8th, 9th, Intel I series and Pentium systems. The motherboard's key features include:
|
Form factor |
ATX |
|
Dimensions |
30.48cm x 24.38cm |
|
CPU support |
Intel Server CPUs like Intel Xeon, Core, and Celeron processors |
|
Memory technology |
DDR4 |
|
Maximum supported RAM |
128GB |
|
Graphic card interface |
PCI-E |
|
Chipset |
Intel C246 |
|
LAN ports |
2 Gigabit Ethernet port |
|
Number of fans |
5 fans |
|
USB ports |
· 2 USB 2.0 ports · 4 USB 3.1 Gen1 ports · 4 USB 3.1 Gen2 ports |
|
Operating temperature |
0 to 50 degrees Celsius |
Final words
On a final note, I would like to say that the quality of service from Supermicro motherboards has not failed us during the past 7 years. We think that the mentioned motherboards are suitable for a lot of usages and depending on the usage, they are on the top.
Once equipped with a Supermicro motherboard, your systems will have a smooth performance, and you won’t experience any problems. We would like to hear your thoughts: let us know in the comments below if there are any other motherboards that are worthy of making to our list.
